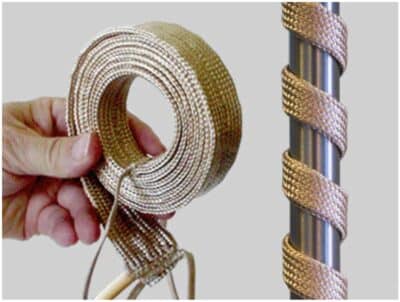

TEMPO” make Heating Tapes are ready to use, wrap around flexible heating elements for heating cylindrical vessels, pipes etc. can be easily installed, removed and used again.
• Lead Wires on one end
• Spiral Heating Element design to give better
temperature uniformity.
• Heavy Braided Fibre Glass Outer Cover..
• Robust & Flexible Element.
• Lower Watt Density, enhancing longer life through better distribution of heat. (Lower
watts per cm of wire)
• 25mm wide tapes may be easily applied todiameters as small as 12mm.
• Temperature controller system (Digital /Thermostatic) can be provided for display,
monitoring and safe operation.
| Heating Tape – High Watt Density | |||
| Type No. | Dimensions (Width x Length) | Wattage (W) | Voltage (V) |
|---|---|---|---|
| TI-681-HIT-H2 | 25 mm x 600 mm | 310 | 230 |
| TI-681-HIT-H4 | 25 mm x 1200 mm | 620 | 230 |
| TI-681-HIT-H6 | 25 mm x 1800 mm | 930 | 230 |
| TI-682-HIT-H2 | 25 mm x 600 mm | 310 | 110 |
| TI-682-HIT-H4 | 25 mm x 1200 mm | 620 | 110 |
| TI-682-HIT-H6 | 25 mm x 1800 mm | 930 | 110 |
| Heating Tape – Medium Watt Density | |||
| Type No. | Dimensions (Width x Length) | Wattage (W) | Voltage (V) |
| TI-681-HIT-M2 | 25 mm x 600 mm | 210 | 230 |
| TI-681-HIT-M4 | 25 mm x 1200 mm | 420 | 230 |
| TI-681-HIT-M6 | 25 mm x 1800 mm | 630 | 230 |
| TI-682-HIT-M2 | 25 mm x 600 mm | 210 | 110 |
| TI-682-HIT-M4 | 25 mm x 1200 mm | 420 | 110 |
| TI-682-HIT-M6 | 25 mm x 1800 mm | 630 | 110 |
| Heating Tape – Low Watt Density | |||
| Type No. | Dimensions (Width x Length) | Wattage (W) | Voltage (V) |
| TI-681-HIT-L2 | 25 mm x 600 mm | 80 | 230 |
| TI-681-HIT-L4 | 25 mm x 1200 mm | 160 | 230 |
| TI-681-HIT-L6 | 25 mm x 1800 mm | 230 | 230 |
| TI-682-HIT-L2 | 25 mm x 600 mm | 80 | 110 |
| TI-682-HIT-L4 | 25 mm x 1200 mm | 160 | 110 |
| TI-682-HIT-L6 | 25 mm x 1800 mm | 230 | 110 |
